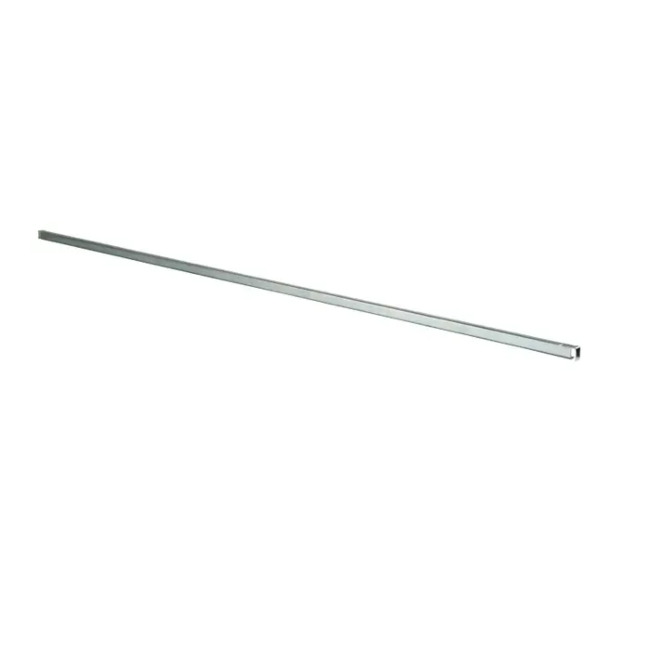

48" Metal Shelf Support for Glass Shelves
Provide reliable support for your glass shelving with this 48" Metal Shelf Support, designed for strength, durability, and clean installation. Constructed from high-quality rolled steel, this support bar is built to handle heavier loads while maintaining a slim, low-profile appearance that won’t distract from your display.
Ideal for retail environments, showrooms, and commercial spaces, this metal support ensures stability for longer glass shelves, helping prevent sagging and maintaining a professional presentation. The durable zinc finish offers corrosion resistance while complementing a wide range of fixture styles and finishes.
• Designed for 48" glass shelves
• Heavy-duty rolled steel construction for superior strength
• Zinc finish for corrosion resistance and durability
• Slim, low-profile design maintains clean sightlines
• Prevents shelf sagging on longer spans
• Ideal for retail, showroom, and commercial use
Product Specifications
• Length: 48"
• Material: Metal (rolled steel)
• Finish: Zinc
• Thickness: .093"
• Weight: 0.9 lbs
Applications
• Retail glass shelving displays
• Slatwall or wall-mounted shelving systems
• Showcases and display cases
• Commercial shelving installations
Popular Questions with AnswersFrequently Asked Questions and Answers
-
Will slatwall shelf brackets fit panels from another supplier?
Yes — provided your panels have standard 3-inch on-center groove spacing, which is the industry standard used by virtually all North American slatwall manufacturers. The brackets snap into the groove with no tools required. If you are unsure of your groov...
Read more -
How much weight can a slatwall shelf bracket hold?
Weight capacity depends on the bracket depth, panel material, whether the panel has aluminum inserts, and how evenly the load is distributed across the shelf. For heavier loads — heavy boxed goods, tools, dense merchandise — use panels with aluminum inser...
Read more -
Does bracket depth affect weight capacity?
Yes. A longer bracket creates a greater moment arm — the load is distributed farther from the wall, increasing stress on the groove. A 16" bracket under the same load as a 6" bracket puts significantly more stress on the slatwall groove. For heavy merchan...
Read more -
How many brackets do I need per shelf?
Use two brackets per shelf as the minimum — one at each end of the shelf. For shelves wider than 48" or under heavy loads, add a center bracket. For glass shelves, use the dedicated glass shelf brackets (GSB series) and consider the EC-DSP48 48" continuou...
Read more -
What bracket depth should I choose for different types of merchandise?
6": small accessories, cosmetics, jewelry, narrow merchandise. 8": standard retail shelf for packaged goods, beauty, pharmacy. 10"-12": standard mid-depth retail shelf for most general merchandise. 14"-16": deeper shelves for boxed goods, folded apparel, ...
Read more -
What is the difference between the 13" and 15" Plastic Bullnose Shelves?
The 13" (WDA13) is suited for narrower merchandise — small accessories, beauty products, packaged goods where a 15" deep shelf would be unnecessarily deep. The 15" (WDA15) accommodates deeper merchandise — standard retail packaged goods, folded apparel, a...
Read more -
What is a shelf rest and when do I need one?
A shelf rest (SRC) is a small clip that installs on the bracket tip to provide a stable contact point for glass shelves. Without a shelf rest, a glass shelf rests directly on bare metal — which can cause the glass to slide, rock, or scratch. Always use sh...
Read more -
Why are the glass shelves sold as sets of 5?
The glass shelves (Glass24W, Glass36W, Glass48W) are sold in sets of 5 because a standard 4' x 8' slatwall panel with 3-inch groove spacing can hold up to 5 shelves at evenly distributed vertical intervals. Selling as a set ensures the retailer has enough...
Read more -
Why use a dedicated glass shelf bracket instead of a standard metal bracket with shelf rests?
The dedicated Glass Shelf Brackets (GSB series) have rubber bumpers built in — they are factory-engineered for glass contact. Standard metal brackets with separately added shelf rests work, but the glass shelf bracket is the cleaner, more reliable solutio...
Read more -
Can glass shelves be cut to a custom width on site?
CSS glass shelves are tempered glass — tempered glass cannot be cut after tempering without shattering. Order the correct width for your installation. For non-standard widths, contact our team at 800-571-3301 about custom glass options.
Read more -
Are glass shelf brackets compatible with Freewall and SlatStrip systems as well as standard slatwall?
Yes. The GSB and BRK-GLB glass shelf brackets are listed in both the Slatwall Shelf Brackets (ID 96) and SoloSlat & Slatstrip Accessories (ID 123) categories — confirming compatibility with slatwall, Freewall, and SlatStrip systems.
Read more -
Can two glass shelf brackets support a 48" wide glass shelf without sagging?
For a 48" wide glass shelf under full merchandise load, the EC-DSP48 48" Metal Shelf Support is strongly recommended over two point-support brackets. The EC-DSP48 provides continuous support across the full panel width, eliminating center sag — a common f...
Read more -
When should I use the Heavy Duty Wood Shelf Bracket (WSB-SHD) versus the standard Large (WSB-Lrg)?
Use the WSB-SHD when the shelf will carry dense, heavy merchandise — canned goods, boxed hardware, hand tools, heavy folded denim, or any merchandise that will consistently load the shelf near its capacity. The WSB-Lrg is appropriate for standard retail l...
Read more -
When do I need the EC-3380 Heavy-Duty Slatwall Support Arm instead of standard shelf brackets?
Specify the EC-3380 when standard bracket load ratings are insufficient for your merchandise weight — dense boxed goods, power tools, heavy hardware, automotive accessories, or any application where you expect to consistently load the shelf near or at the...
Read more -
My jewelry store has a full run of 48" wide glass shelves on slatwall — do I need special support?
For a full 48" glass shelf run under jewelry display loads, the EC-DSP48 48" Metal Shelf Support is the correct specification. Two point-support brackets at each end allow the glass to flex and potentially sag at the center under load. The EC-DSP48 spans ...
Read more
