14" Raw Steel Wood Shelf Bracket
1/2" x 1 1/2" Rectangular Tubing
Raw Steel Outrigger Posts

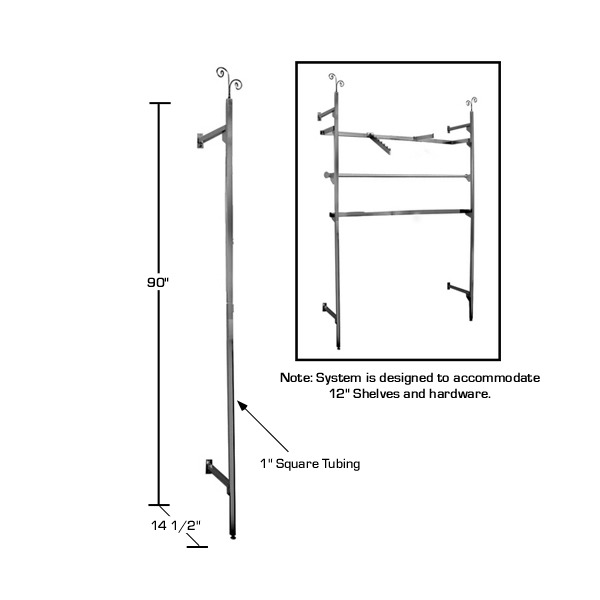

Vertical Outrigger Post
1" square tubing with 15"returns.
Universal Slotting
Heights Available: 90" & 96"
Designed to accommodate 12" - 13" Deep Shelves
Steel Outrigger Accessories Shown Sold Separately
Sold Each
Product ships by freight truck only.
Note: The Raw Steel finish is a clear powder coat finish designed to enhance the material flaws, weld marks and seams created during the metal manufacturing process. This unique and popular finish is ideal for any retail environment that wants an alternative to the traditional chrome, black and white finishes.
Popular Questions with AnswersFrequently Asked Questions and Answers
-
How does an outrigger system work — does it put all the weight on the wall?
No — that is a key advantage of outrigger systems. The outrigger post mounts to the wall at the top and bottom, with the lower attachment resting on the floor. This transfers merchandise weight to the floor through the post, not to the wall. This makes ou...
Read more -
Can I use my existing slatwall accessories on an outrigger system?
Standard slatwall hooks, brackets, and faceouts are NOT compatible with outrigger slotted post systems — they engage slatwall grooves, not slotted standard holes. Use outrigger-compatible accessories: tube brackets (WCR, WCR1, WA212), shelf brackets (RS-W...
Read more -
What makes the Raw Steel Outrigger different from the Pipe Outrigger system?
The Raw Steel Outrigger uses 2" square steel tubing uprights with a clear powder coat that enhances the natural raw steel appearance — including the material weld marks, seams, and surface characteristics. This creates a more industrial, unfinished aesthe...
Read more -
What is the WCR (3") bracket used for versus the WCR1 (12") bracket on outriggers?
The WCR at 3" projection keeps the hangbar very close to the outrigger post — used for shallow garment zones directly in front of the post, or for mounting a hangbar between closely spaced posts. The WCR1 at 12" projects the hangbar further from the post ...
Read more
