Chrome Round Tubing End Cap
12" Round Universal Hangbar Brackets

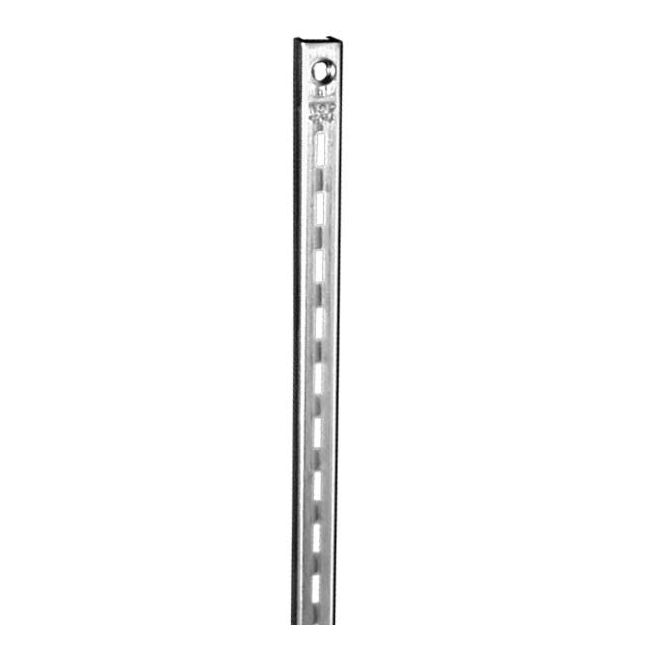

Universal Wall Standard
Universal surface-mounted slotted standards. 1/2" slots on 1" centers. Countersunk mounting screw holes are 9" apart. The Universal surface-mounted slotted wall standard is 11/16" and 3/32" thick.
Each Universal Wall Standard Panel Features:
Single Slotting
1/2" Slots and 1" Centers.
Zinc Finish
Available Lengths: 48". 60", 72", 84" and 96"
Please note, the universal surface-mounted slotted standards are not a "universal fit" product for all wall standard systems. Please contact us with any questions on fitment, we will be happy to assist.
Popular Questions with AnswersFrequently Asked Questions and Answers
-
What is the difference between Universal Wall Standards and Heavy Duty Wall Standards?
Universal Wall Standards (W40-) use 1/2" slots on 1" centers — the most common pattern in North American retail, compatible with the widest range of brackets and accessories. Heavy Duty Wall Standards (W700-) use 1" slots on 2" centers — a heavier pattern...
Read more -
How do I tell which slot pattern my existing wall standards have?
Measure the slot width and the center-to-center distance between slots. Universal: 1/2" wide slots, 1" center-to-center. Heavy Duty: 1" wide slots, 2" center-to-center. You can also count slots per foot — Universal has approximately 12 slots per foot; Hea...
Read more -
What spacing should I use between wall standard uprights?
Standard retail spacing is 24" on-center for most shelving applications. For shelves 4 feet wide or longer, add a center standard at 24" intervals to prevent shelf sag. For glass shelves, space standards no more than 24" apart. For hangbars and faceouts w...
Read more -
When should I use a ball waterfall (WTS) versus a hook waterfall (WTS5H) on wall standards?
Ball-tip waterfalls (WTS) are the correct choice for handbags, purses, scarves, belts, and soft accessories where a J-hook would catch on hardware or strap attachments. Hook waterfalls (WTS5H) are designed for garments on hangers. Match the waterfall tip ...
Read more -
Do I always need shelf rests and rubber bumpers when using glass shelves on wall standards?
Yes. SRC shelf rests provide a stable contact point for glass shelves; SRB rubber bumpers protect glass from direct metal contact and prevent scratching. Both are required for glass shelf installations on any CSS wall standard system — Universal, Heavy Du...
Read more
