Heavy Duty Wall Standard
Rubber Bumper for Shelf Rest

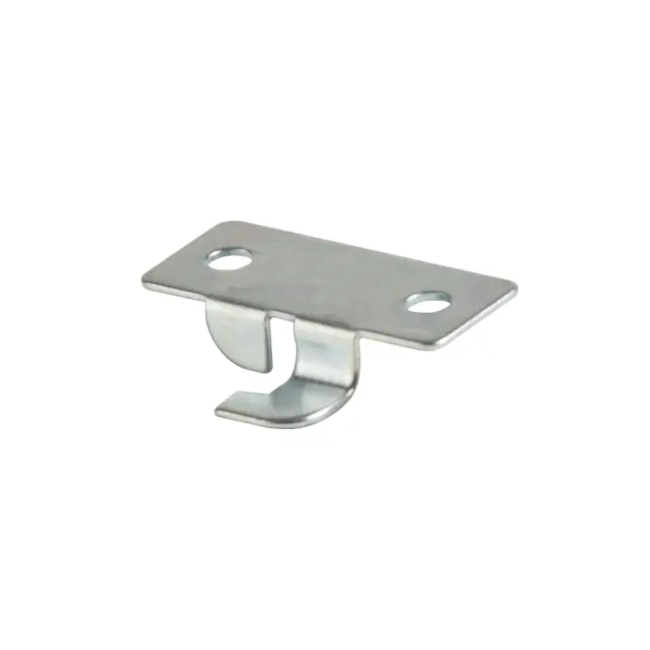

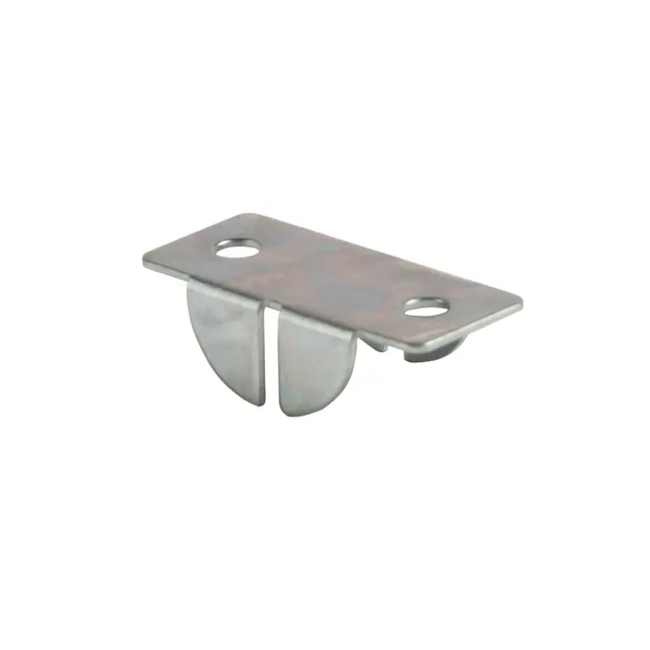

Center Style Shelf Rest
For use with all Universal and Heavy Duty brackets and slatwall brackets. Secures glass or metal shelves.
Please contact us with any questions on fitment, we will be happy to assist.
Popular Questions with AnswersFrequently Asked Questions and Answers
-
What is the difference between Universal Wall Standards and Heavy Duty Wall Standards?
Universal Wall Standards (W40-) use 1/2" slots on 1" centers — the most common pattern in North American retail, compatible with the widest range of brackets and accessories. Heavy Duty Wall Standards (W700-) use 1" slots on 2" centers — a heavier pattern...
Read more -
How do I tell which slot pattern my existing wall standards have?
Measure the slot width and the center-to-center distance between slots. Universal: 1/2" wide slots, 1" center-to-center. Heavy Duty: 1" wide slots, 2" center-to-center. You can also count slots per foot — Universal has approximately 12 slots per foot; Hea...
Read more -
What spacing should I use between wall standard uprights?
Standard retail spacing is 24" on-center for most shelving applications. For shelves 4 feet wide or longer, add a center standard at 24" intervals to prevent shelf sag. For glass shelves, space standards no more than 24" apart. For hangbars and faceouts w...
Read more -
When should I use a ball waterfall (WTS) versus a hook waterfall (WTS5H) on wall standards?
Ball-tip waterfalls (WTS) are the correct choice for handbags, purses, scarves, belts, and soft accessories where a J-hook would catch on hardware or strap attachments. Hook waterfalls (WTS5H) are designed for garments on hangers. Match the waterfall tip ...
Read more -
My store sells heavy footwear and boxed merchandise — are Heavy Duty wall standards noticeably stronger than Universal?
Yes. Heavy Duty standards use heavier gauge steel and broader bracket engagement that distributes load more effectively under dense merchandise. For footwear, boxed goods, hardware, and any merchandise consistently loaded near maximum capacity, Heavy Duty...
Read more -
Will the WG1 Heavy Duty bracket fit Universal wall standards?
No. The WG1 is designed for 1" on 2" center Heavy Duty standard slots only. It will not properly engage Universal standard slots (1/2" on 1" center). Using the wrong bracket in a mismatched standard is a safety hazard — always confirm slot pattern compati...
Read more -
What is the advantage of double slotted standards (WSS20) over single slotted?
Double slotted standards have two parallel columns of slots running the full length. The advantages are more bracket insertion points per standard — finer height adjustment increments; longer bracket engagement making brackets more stable under load; and ...
Read more -
What is the difference between concealed standards for slatwall (SSRBZ/SSRBB) and for drywall (SSRB-11Z/SSRB-11B)?
The slatwall versions (SSRBZ zinc, SSRBB black) are sized and profiled to install flush into the routed channel cut in a 3/4" thick slatwall panel — they sit behind the slatwall face. The drywall versions (SSRB-11Z zinc, SSRB-11B black) are sized for inst...
Read more -
The FRSP gives the concealed standard look without routing into my existing wall — how does it work?
The FRSP is a pre-built panel with concealed standards already installed behind a finished face. It mounts to the existing wall surface as a complete unit — no routing, no wall modification. Accessories mount through the panel face into the concealed stan...
Read more -
Do I always need shelf rests and rubber bumpers when using glass shelves on wall standards?
Yes. SRC shelf rests provide a stable contact point for glass shelves; SRB rubber bumpers protect glass from direct metal contact and prevent scratching. Both are required for glass shelf installations on any CSS wall standard system — Universal, Heavy Du...
Read more
