Will slatwall shelf brackets fit panels from another supplier?

Yes — provided your panels have standard 3-inch on-center groove spacing, which is the industry standard used by virtually all North American slatwall manufacturers. The brackets snap into the groove with no tools required. If you are unsure of your groove spacing, measure center-to-center between two adjacent grooves.

How much weight can a slatwall shelf bracket hold?

Weight capacity depends on the bracket depth, panel material, whether the panel has aluminum inserts, and how evenly the load is distributed across the shelf. For heavier loads — heavy boxed goods, tools, dense merchandise — use panels with aluminum inserts and specify the Heavy Duty Slatwall Support Arm (EC-3380). Contact our team at 800-571-3301 for load specifications for your specific application.

Does bracket depth affect weight capacity?

Yes. A longer bracket creates a greater moment arm — the load is distributed farther from the wall, increasing stress on the groove. A 16" bracket under the same load as a 6" bracket puts significantly more stress on the slatwall groove. For heavy merchandise on deep shelves, ensure panels have aluminum insert reinforcement and consider the Heavy Duty Support Arm (EC-3380).

How many brackets do I need per shelf?

Use two brackets per shelf as the minimum — one at each end of the shelf. For shelves wider than 48" or under heavy loads, add a center bracket. For glass shelves, use the dedicated glass shelf brackets (GSB series) and consider the EC-DSP48 48" continuous support bar for full-panel glass shelf installations to prevent center sag.

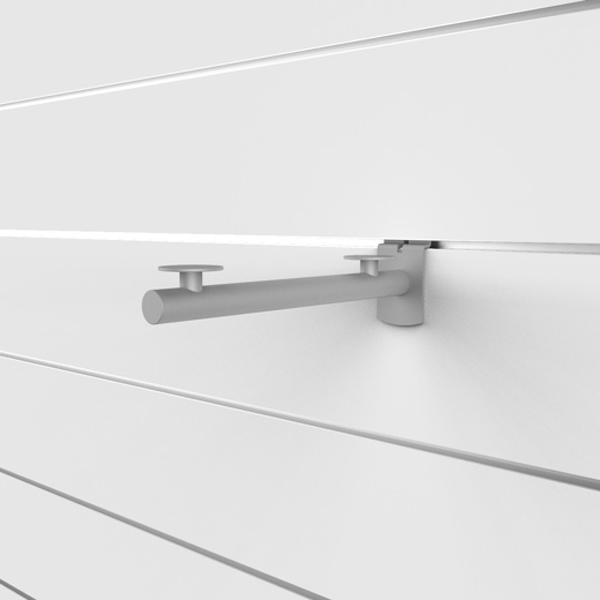

The SFO-10R and SFO-14R round faceout brackets are listed under both slatwall and SoloSlat/Freewall — do they work on both systems?

Yes. The SFO-10R and SFO-14R are confirmed compatible with slatwall, Freewall, SlatStrip, and SlatGrid systems — making them the most versatile faceout arms in the CSS lineup.
